• Premium Construction: The lamp shade of our paint baking lamp is meticulously crafted from 304 stainless steel, offering a robust energy-collecting effect and exceptional resistance to oxidation. The die-cast aluminum radiator ensures superior heat dissipation, providing durability and an extended lifespan.

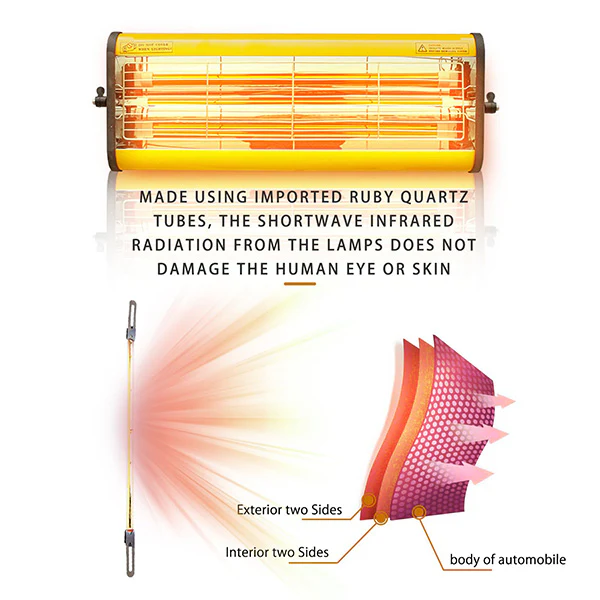

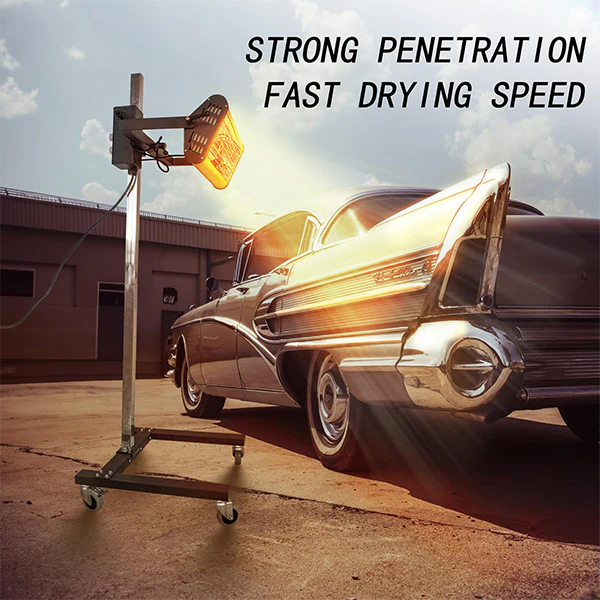

• Swift Shortwave Infrared Heating: Experience accelerated paint drying with our shortwave infrared paint curing lamp. Boasting high luminous efficiency and potent penetrating power, this lamp facilitates quick drying. Its exceptional thermal efficiency penetrates coating layers, drying from the inside out, resulting in improved surface gloss and coating adhesion, while reducing wrinkles and gaps.

• Safety Assurance: Our paint lamp features a high-quality halogen lamp tube, emitting minimal visible light and low glare, ensuring a safe operation without harming your eyes or skin. The heating process is clean, free from hot air, and avoids secondary pollution.

• Effortless Operation: Designed for user convenience, our paint curing lamp comes equipped with a pulley for easy mobility, complete with a locking wheel for stability. The smart timer, adjustable from 1 to 30 minutes, allows for precise control of baking times based on the spray surface. The lamp head's height adjustment and rotation feature enhance operational flexibility, especially in narrow spaces.

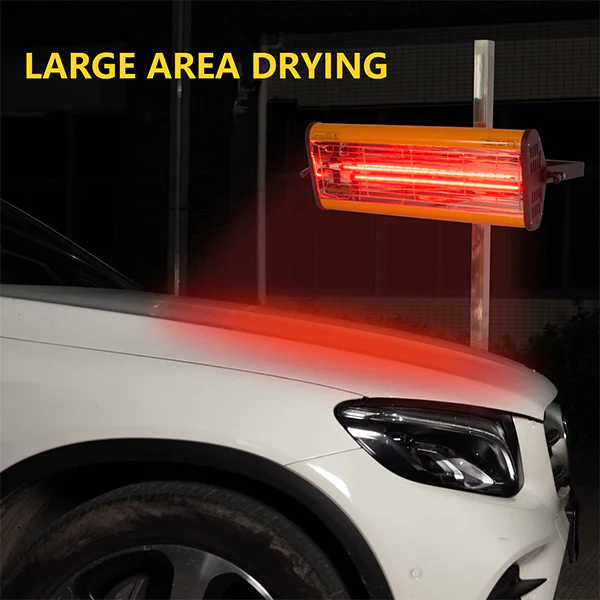

• Versatile Applications: Widely employed in local paint drying, putty drying, and automobile spray booths, our paint baking lamp serves as the ideal spray baking tool for sheet metal painting, on-site repairs, and engine drying. It stands as the ultimate auxiliary tool for comprehensive car repair and maintenance.

Technical Data

Features:

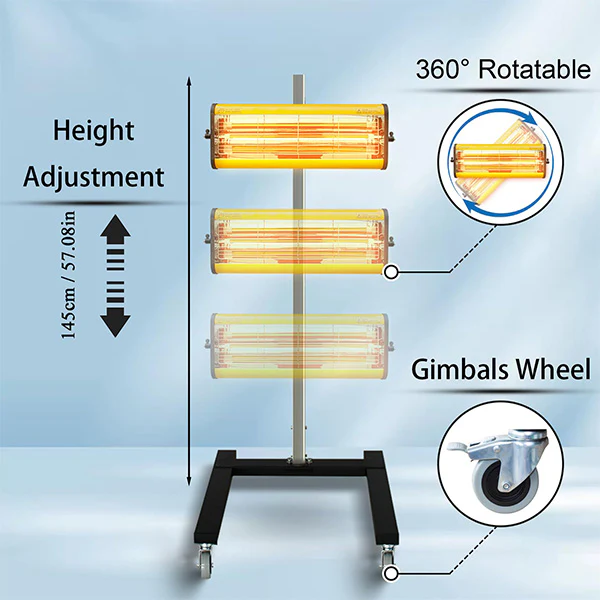

• Adjustable: Move the lamp head up and down to adjust the height of the paint lamp
• Timing Function: The adjustable time range (1 to 30 minutes) allows you to set the spray time according to the painted surface freely.
• Movable: Equipped with a lockable swivel wheel that can be easily moved
• High Heat Dissipation Performance: Thermal hole design, which significantly enhances the heat dissipation function and effectively improves the service life.
• Highly Safe: With a thick and long power cord, it is highly safe and can meet various work needs.



Technical Data:

• Input voltage (50/60Hz): 220V/ 110V × 1Ph
• Emitter power(W): 1x1050
• Max power (kVA): 1.1
• Baking area (m2): 0.4x 0.8
• Temperature(°C): 60-70
• Net weight(kg): 14

Product Details:

Rotated 180 Degrees Up and Down	Rotated 360 Degrees Left and Right	Equipped with Swivel Wheel	Stainless Post

	Paint Curing Lamp	Infrared Curing Light Box	Paint Curing Lamp	Paint Curing Lamp	Paint Curing Lamp
Power:	1000W	300W	1050W	2100W	2100W
Baking Area:	0.6 x 0.38㎡		0.4 x 0.8㎡	0.6 x 0.8㎡	0.6 x 0.8㎡
Timer:	/	1-30min	1-30min	1-30min	1-60min

Answered Questions

I need a Replacement bulb. Where can I get one?

Answer

Hello, you can buy the special lamp matching IR series on this page, if you have other questions, you can click the message tool on the lower right corner to ask us. B2 Series Replacement bulb

Can this be effectively used to dry epoxy resins also?

Answer

Of course! This can be used effectively for drying epoxy resins. Our methods/products have been widely used to dry waxes, including epoxy resins. It will help you complete your work quickly and efficiently and ensure the quality and durability of the end result. If you have any questions or need more information, please contact us; we will be happy to serve you!

Does this get hot enough to cure powder coatings?

Answer

It gets hot enough to cure powder coatings effectively. Our product/method is designed to provide the precise temperature required for curing powder coatings, ensuring a durable and high-quality finish. You can trust it to meet your curing needs reliably.

Will this get up to 400 plus surface temp if insulated around the part with foil?

Answer

Hello, the temperature will gradually rise as the heating time increases. We have not tested the situation you mentioned, so the safety in this situation cannot be fully guaranteed.

Technical Data

• Model: B1E
• Functions: Timer, full baking
• Input voltage (50/60Hz): 110V 1ph

• Emitter power (W): 1 x 1050
• Max power (kVA): 1.1
• Timing range (min): 30
• Baking area (m²): 0.4 x 0.8
• Temperature (°C): 60 - 70
• Net weight: 14kg
