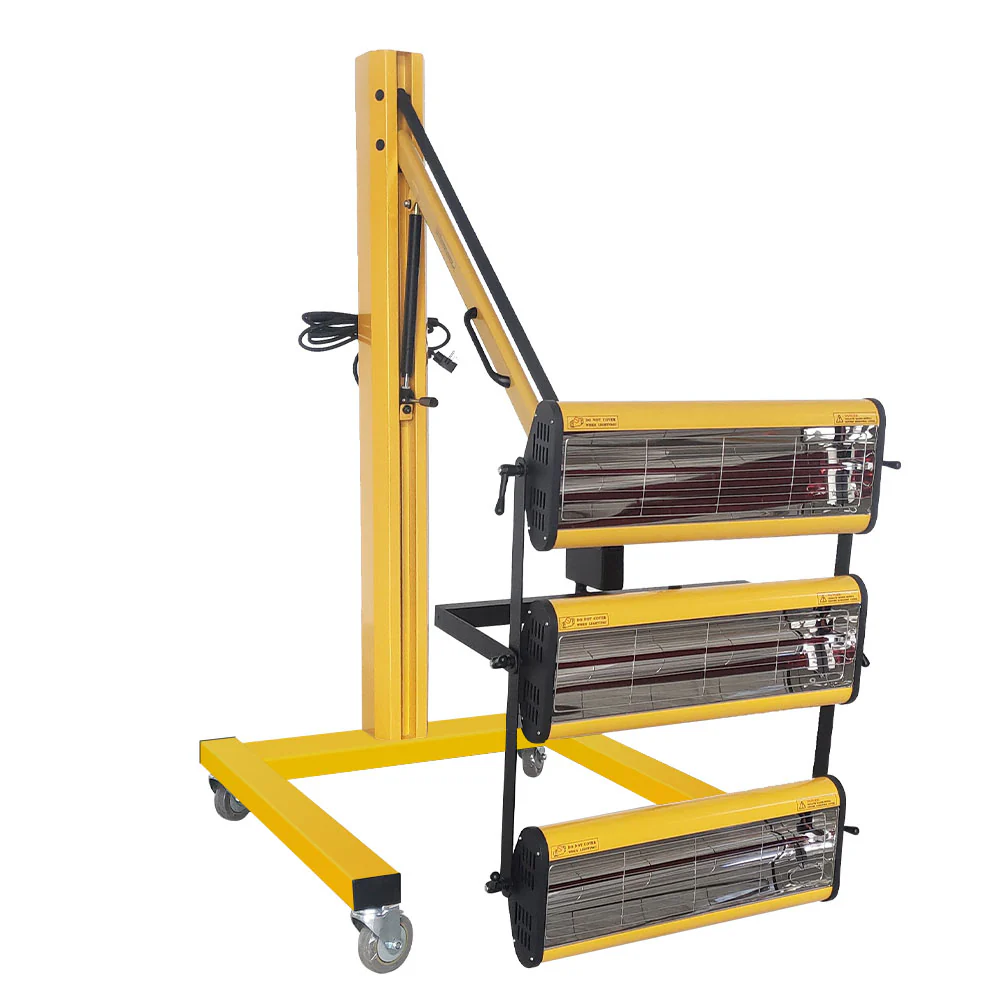

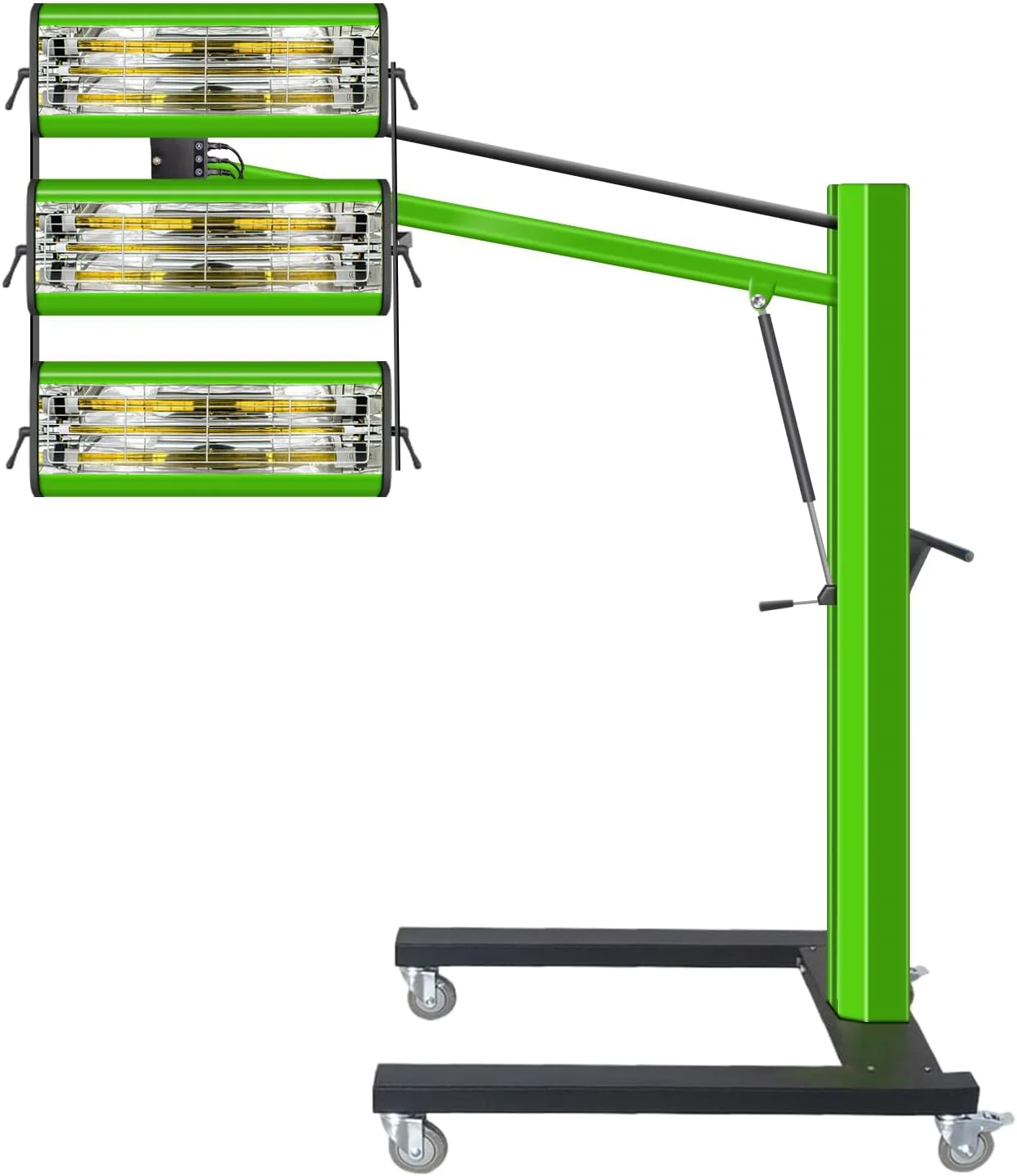

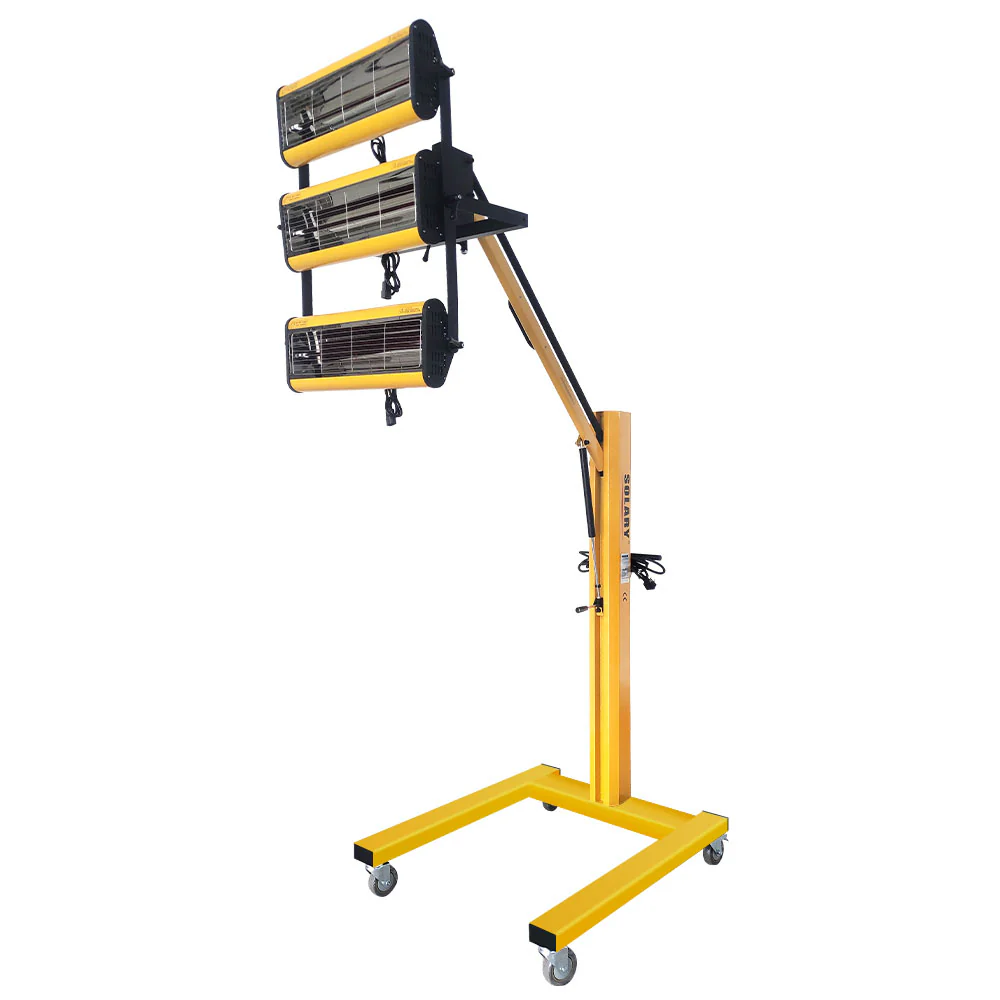

Solary Baking Infrared Paint Curing Lamp, Automotive Heat Lamps for Paint

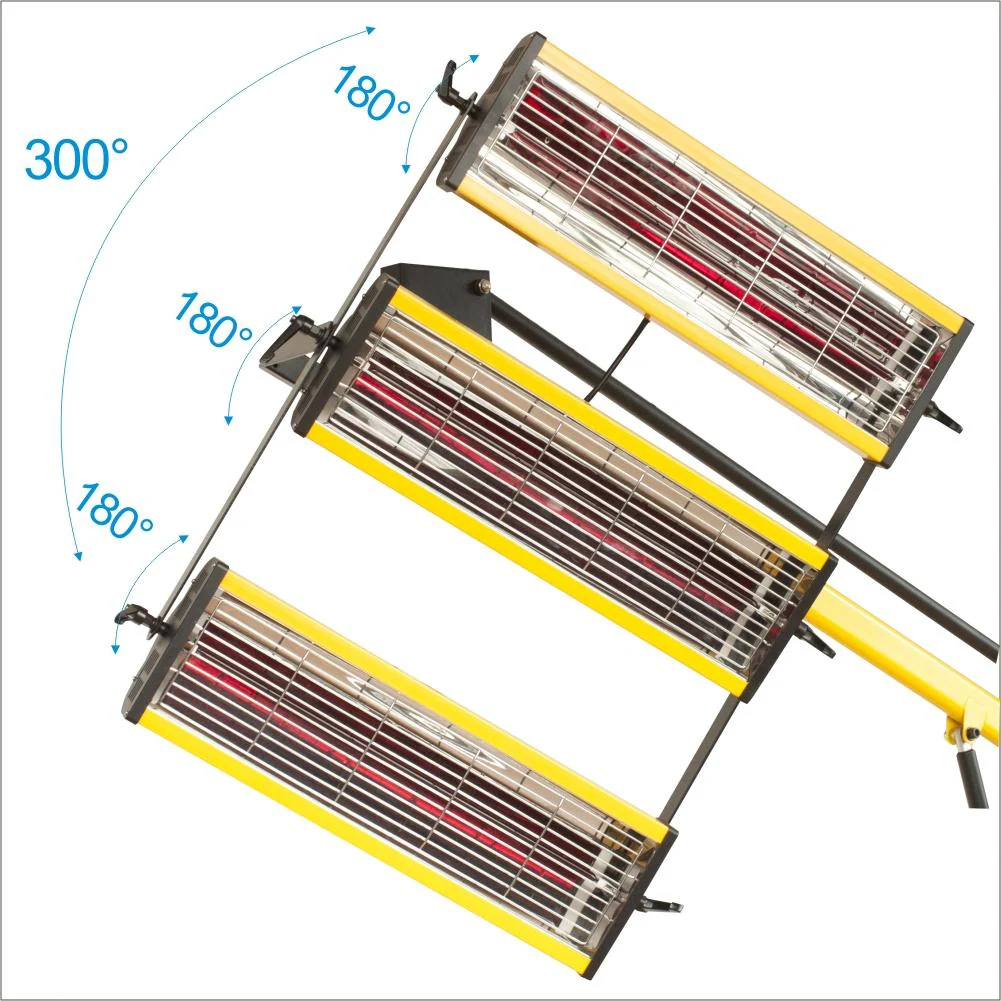

- Solary Electricals B3EA three head lamp infrared curing lamp is a 300-degree rotatable 3 heads curing lamp equipped with 3 180-degree rotatable individual chairs.
- B3EA infrared curing lamp generates direct, powerful penetration into the inner layer of paint. Completely dry two-pack paints within 15 minutes and polyester putty in 5 minutes.
- Compared with model B3E, model B3EA has a function of adjusting baking power (temperature).
- Individually adjustable emitter cassettes with a service life span of up to 6,000 hours.
- Gradual temperature increases with full baking function for professional finishing.
- Adjustable curing power.
- Switch: CE/UL certified, high quality, and steady performance.
- B3EA infrared curing lamp is ideal for polyurethane paint (components paint), single-component paint, and water-based paint
- Even radiation with timer, pre-heating, and full baking functions. If you want an extra distance sensor function, check out Solary Electricals B3S Infrared Curing Lamp.
Our paint-baking lamp adopts upgraded short-wave infrared technology, and the paint-baking efficiency is higher than that of traditional heat sources. Presenting a bright paint surface only takes 15 minutes, saving your working time and improving your work efficiency.
Powerful Short Wave
Fitted with a powerful 3x1050W short wave infrared lamp, the machine can achieve a quick baking—temperature range of 40-70℃. The short wave has good penetration, making the drying surface smooth.
Large Drying Surface
The drying areas of three individually controllable infrared lamps are up to 1x0.8m², which is powerful and efficient.
Security Overload Protection
This baking lamp is adopted with automatic safety overload protection. It is designed to avoid burn-in and prolong the service time of the machine.

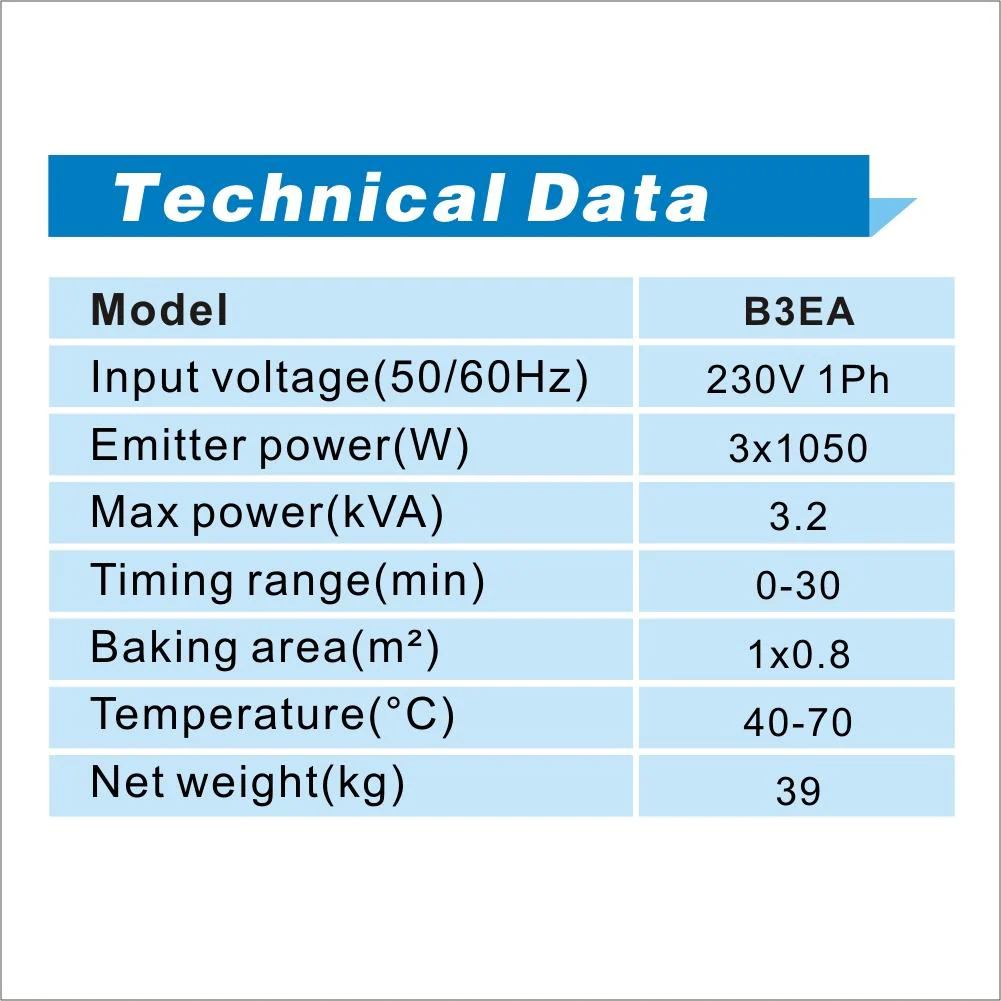

Technical Data:
- Input voltage (50/60Hz): 230V 1Ph
- Emitter power(W): 3x1050
- Max power(kVA): 3.2
- Timing range (min): 0-30
- Baking area(m²): 1x0.8
- Temperature(°C): 40-70
- Net weight(kg): 39
Details:
|
|
|
|
|---|---|---|
Universal Hovering SystemThe lamp head is equipped with locking handles in all directions, which can realize all-round hovering, which is convenient for you to paint all parts of the car. |
The Lamp Head can be RotatedThe single lamp head of the paint curing lamp can adjust the angle independently, the operation is flexible, and it can paint the car in all directions. |
Gas StrutThe paint lamp stand has a pneumatic strut adjustment, which can quickly and conveniently adjust the height and angle of the paint lamp, saving time and effort. |
Multi-angle Display
|
|
|
|
|
|---|---|---|---|
Technical Data
- Model: B3EA

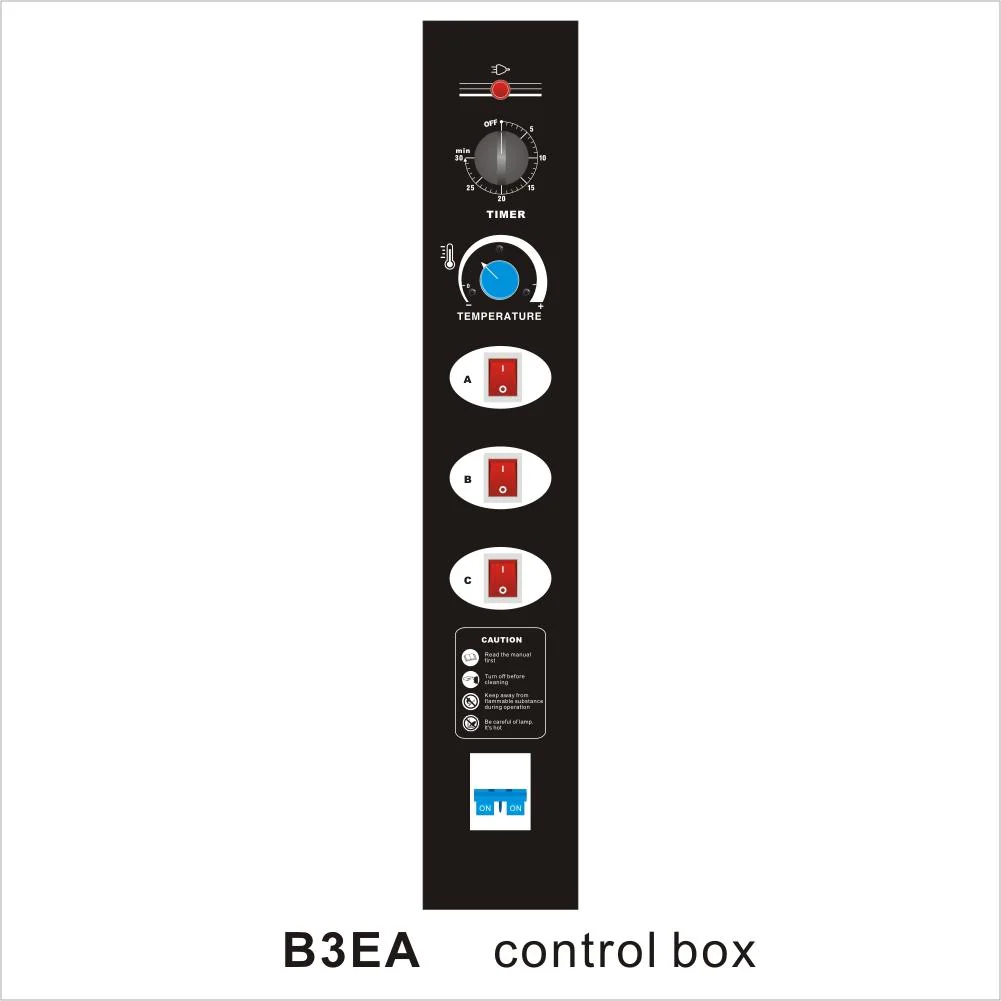

- Functions: Timer, pre-heating, full baking, adjustable curing power
- Input Voltage (50/60Hz): 230V 1ph
- Emitter Power (W): 3 x 1050
- Max Power (kVA): 3.2
- Timing Range (min): 30
- Baking Area (m²): 1.0 x 0.8
- Temperature (°C): 40 - 70
- Net Weight: 39kg
